calamares
GUIインストーラCalamaresをカスタマイズしてみました。

カスタマイズしたCalamaresを組み込んだライブISOイメージで起動し、Arch Linuxをインストールして、Arch Linuxが起動しました。
スクリーンショット

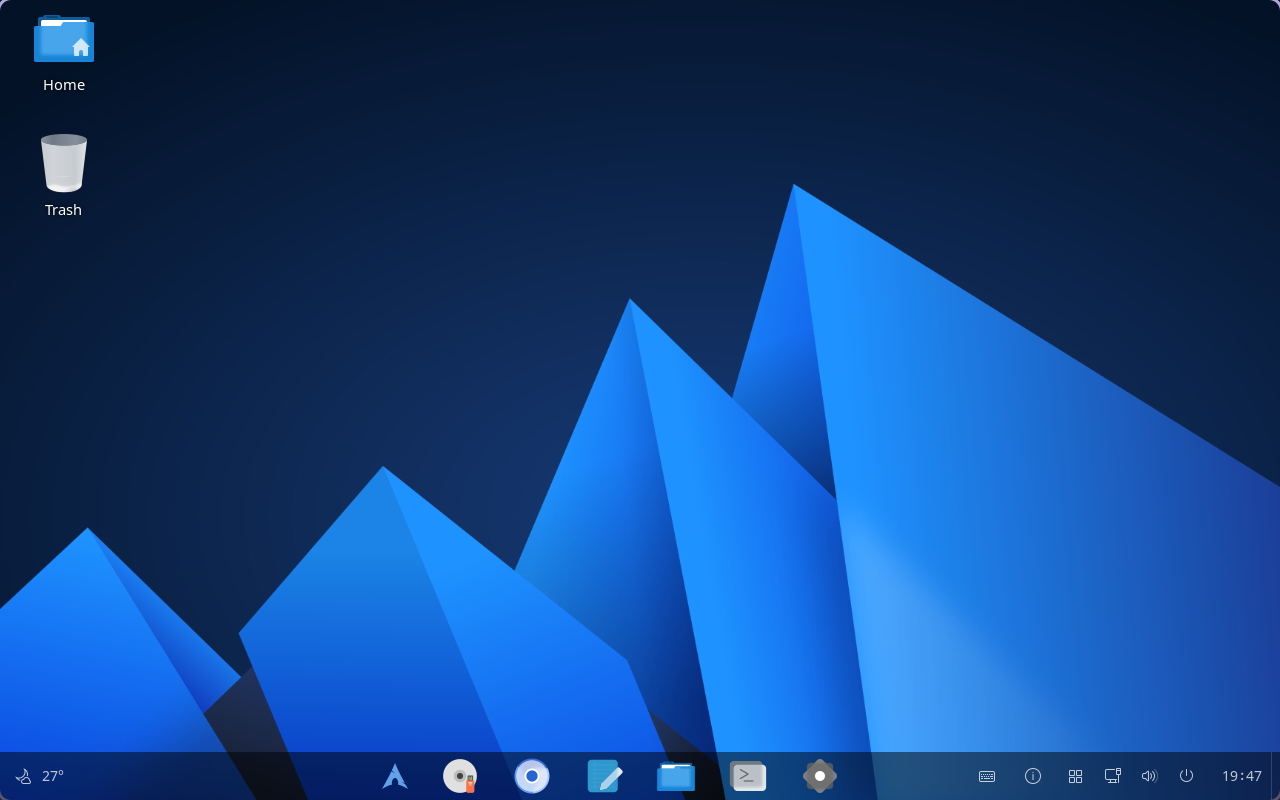

ライブISO起動直後
時刻と天気を自動調整。起動時にミラーリストも更新。

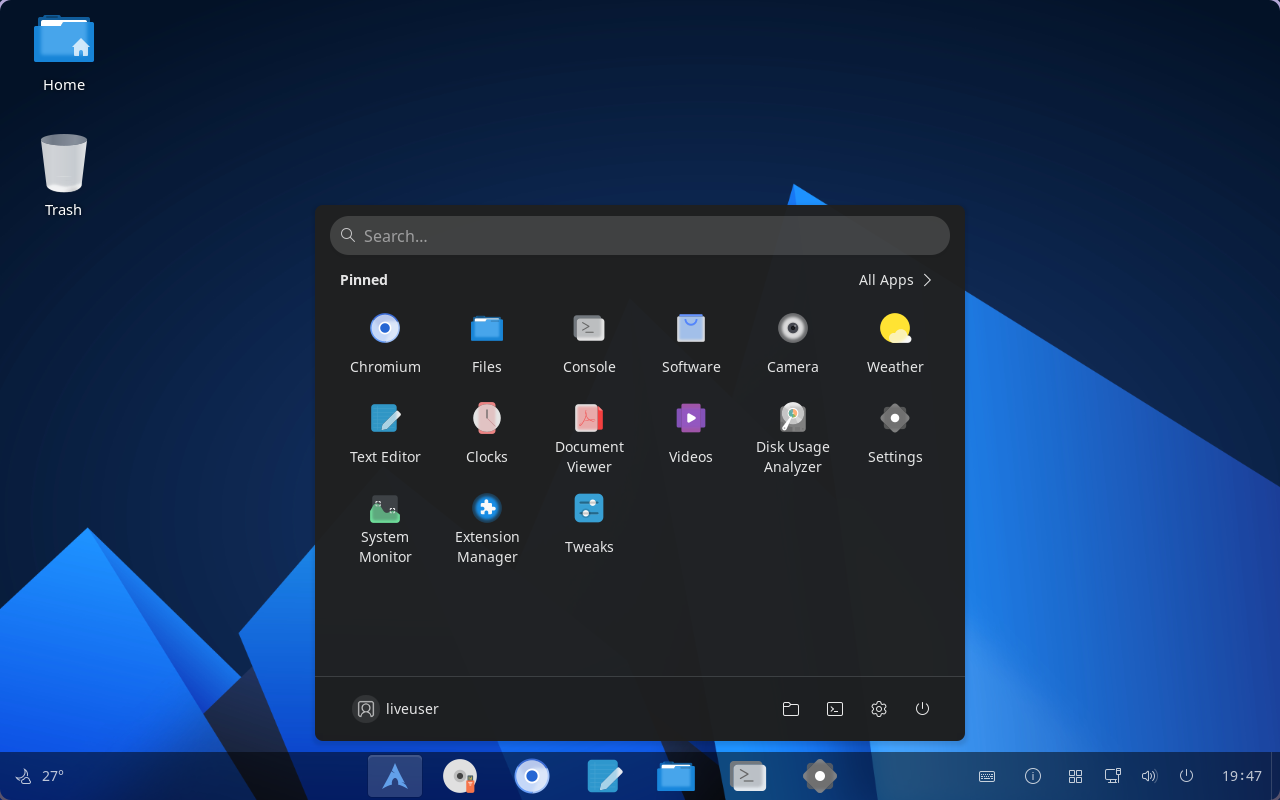

メニュー
ArcMenuの11テーマ

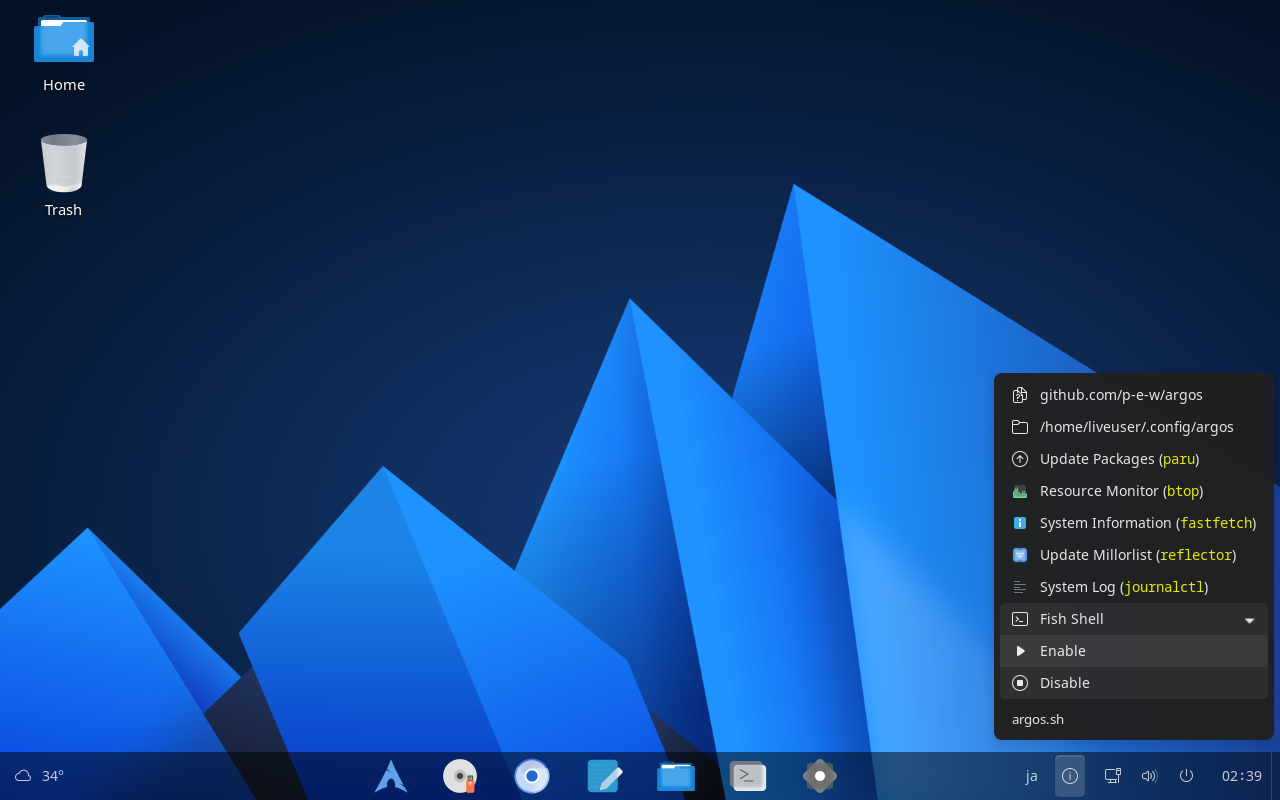

スクリプト
Argosでスクリプト実行(追加/編集可能)

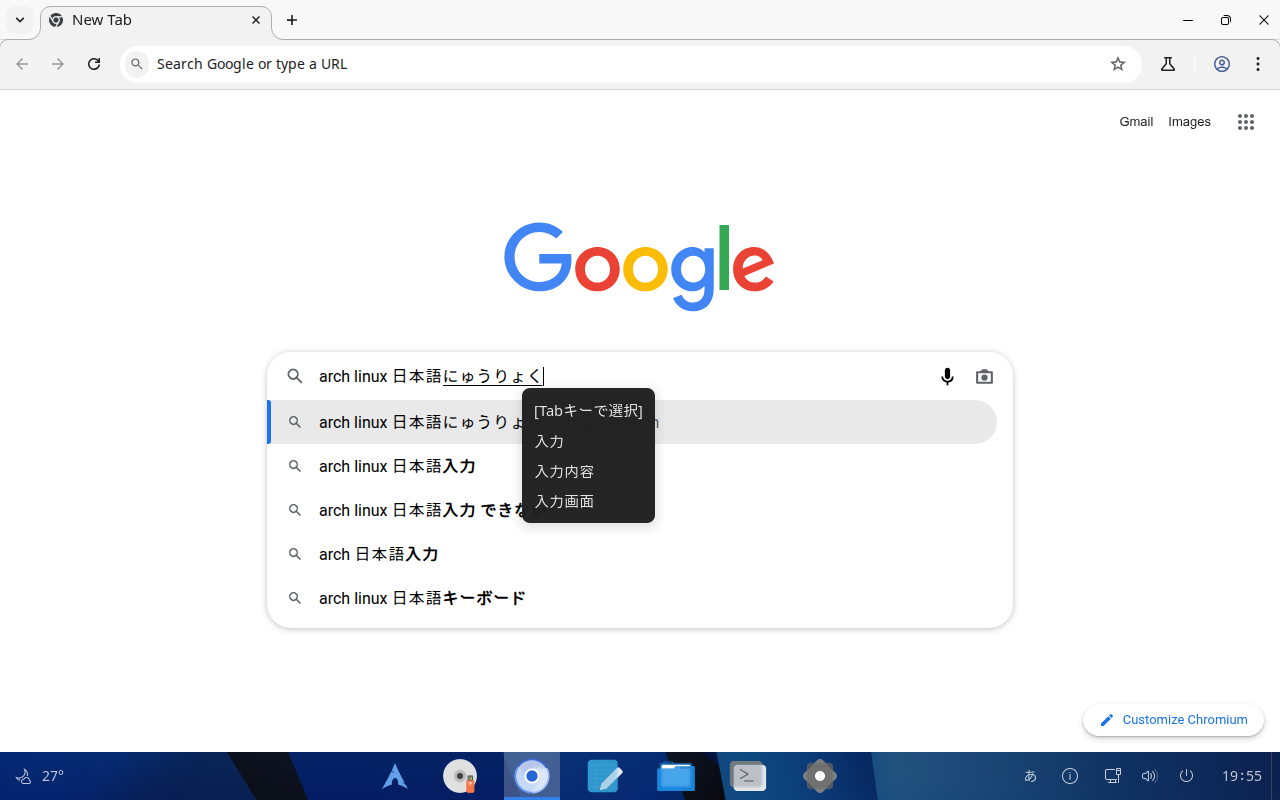

ライブISOで日本語入力

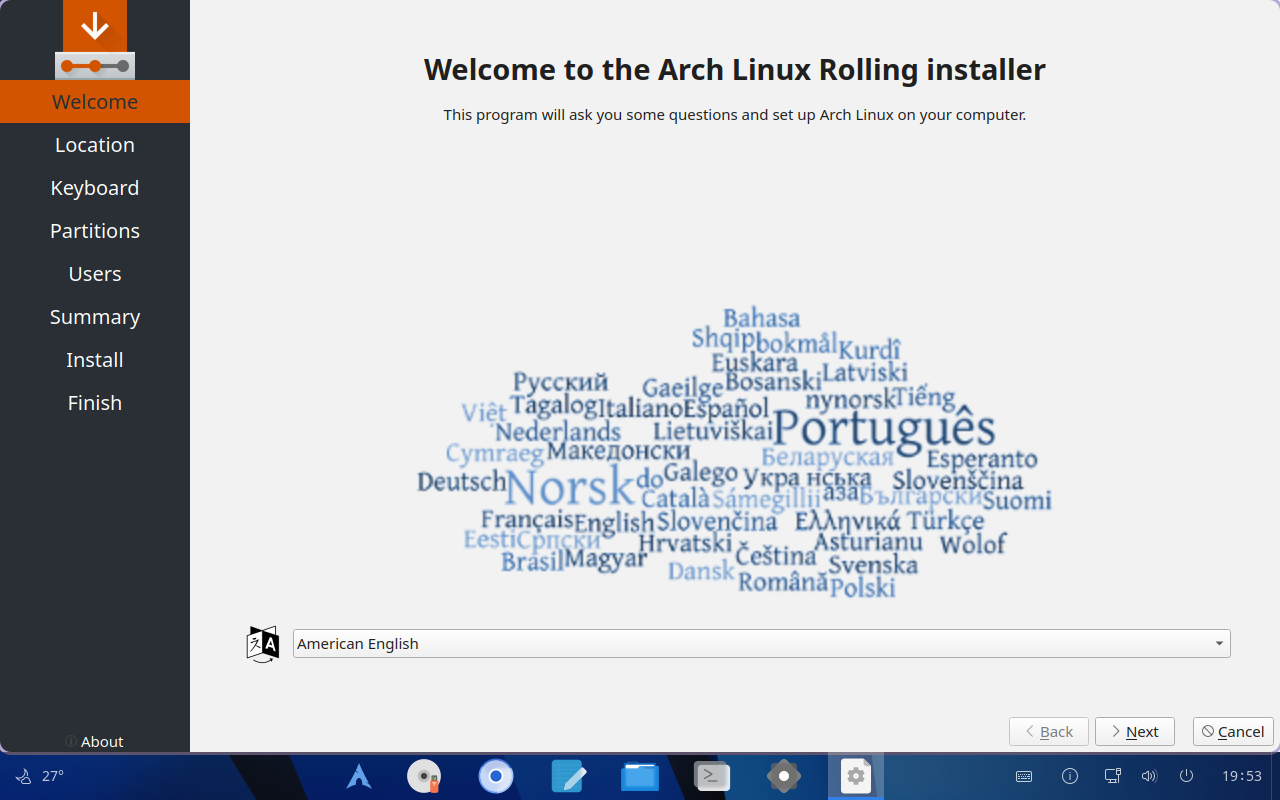

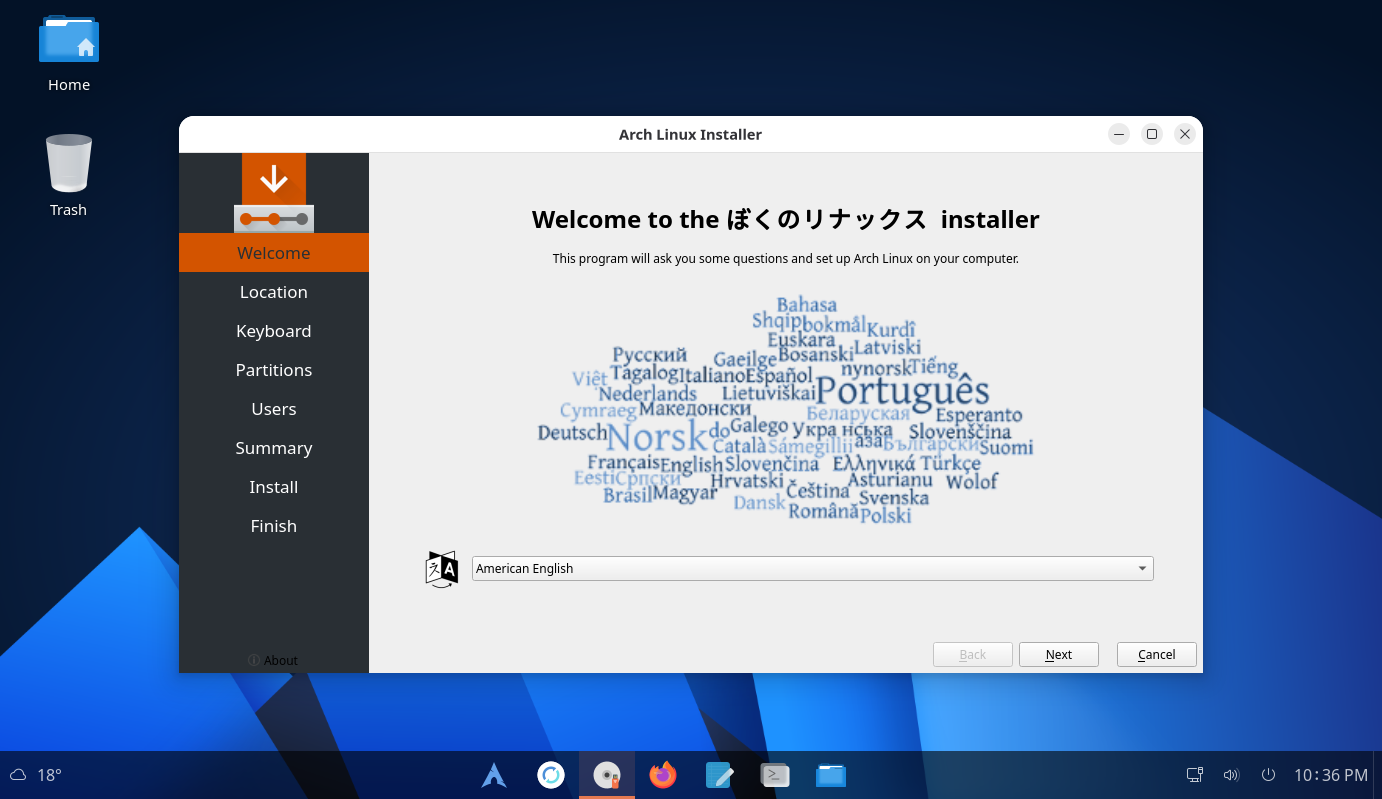

インストーラ

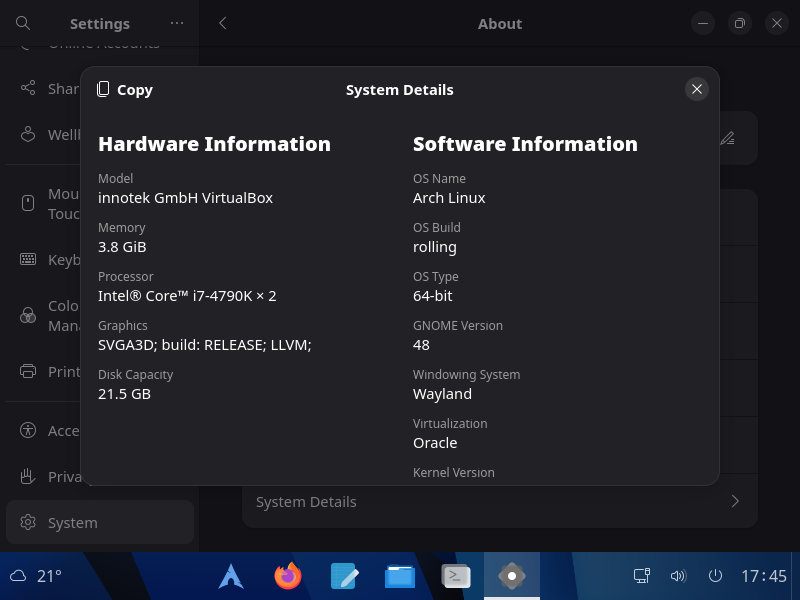

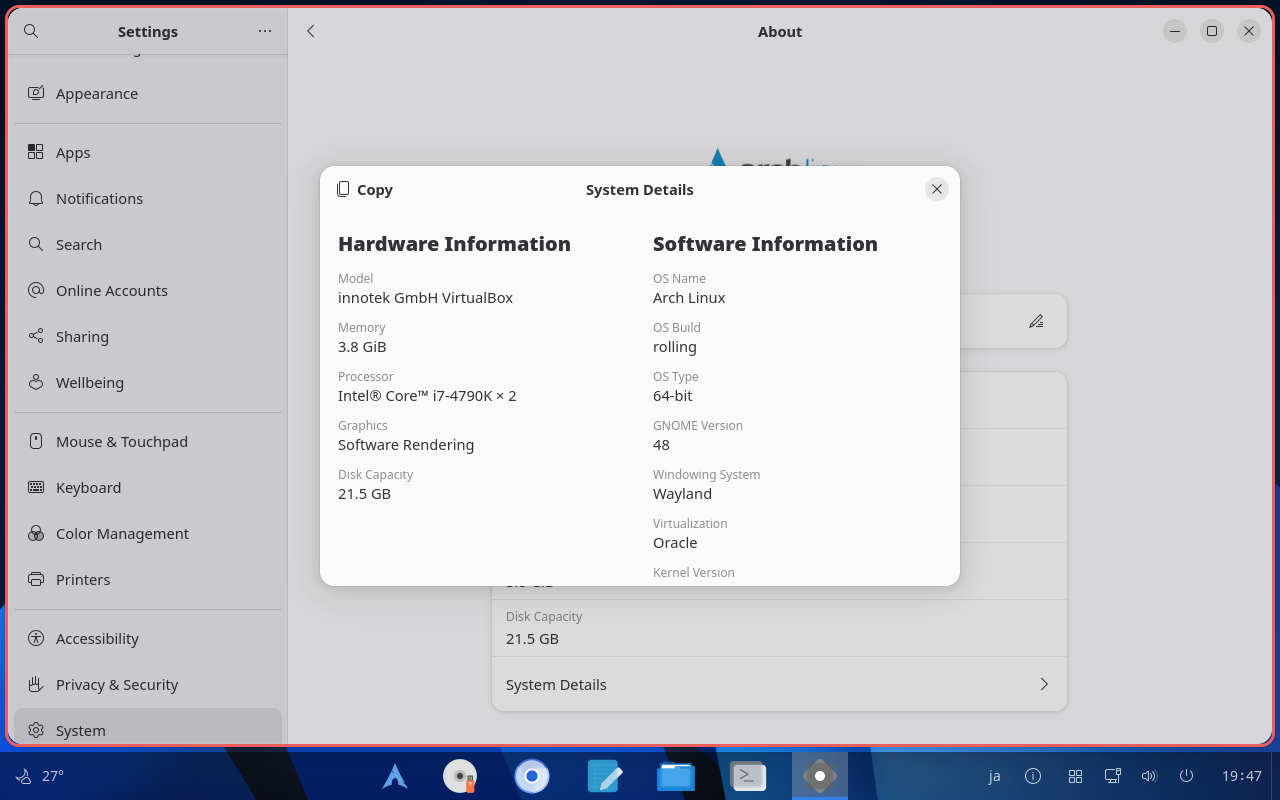

システム情報
ライブISOでの日本語化
ライブISO作成時に初期言語を日本語にすることもできますが、英語版のISOでも日本語に切り替えることができます。

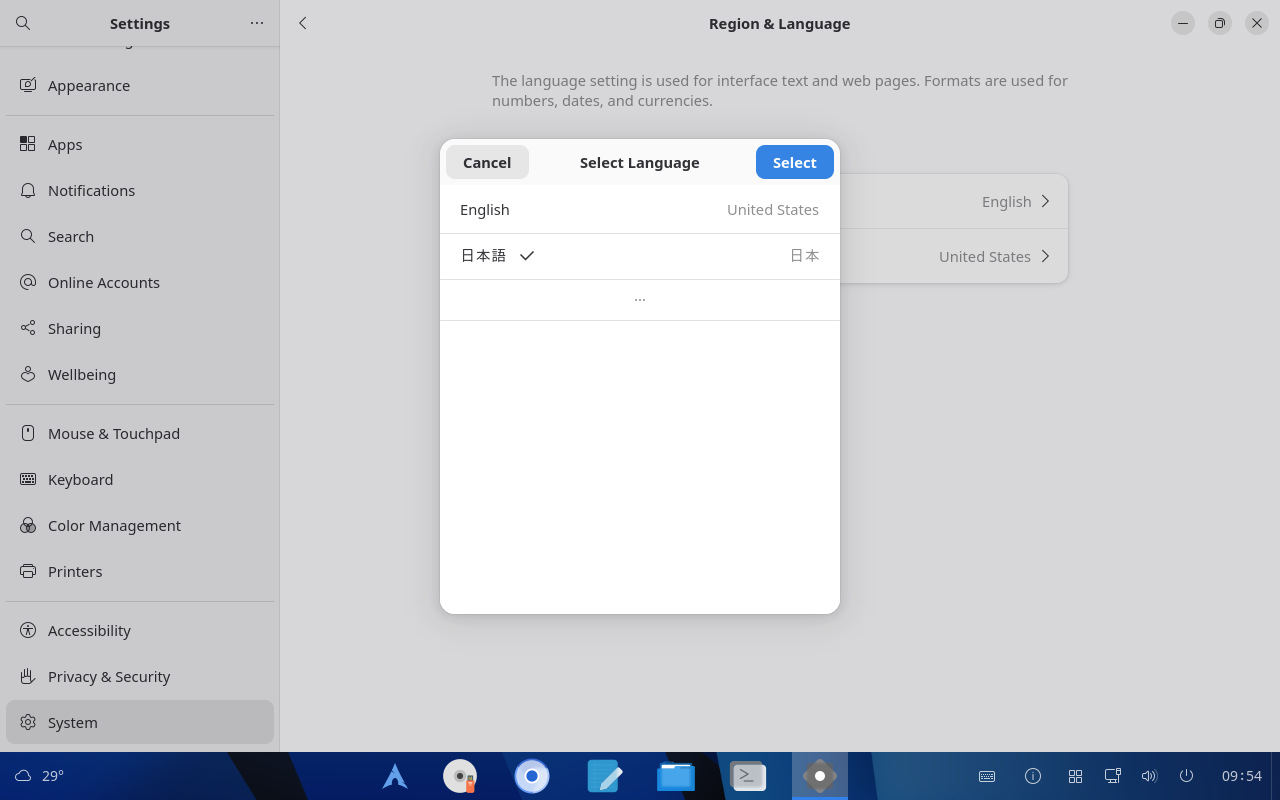

Settings(gnome-control-center) > System > Region & Language > Language で日本語を選択してSelectして、Log Out...

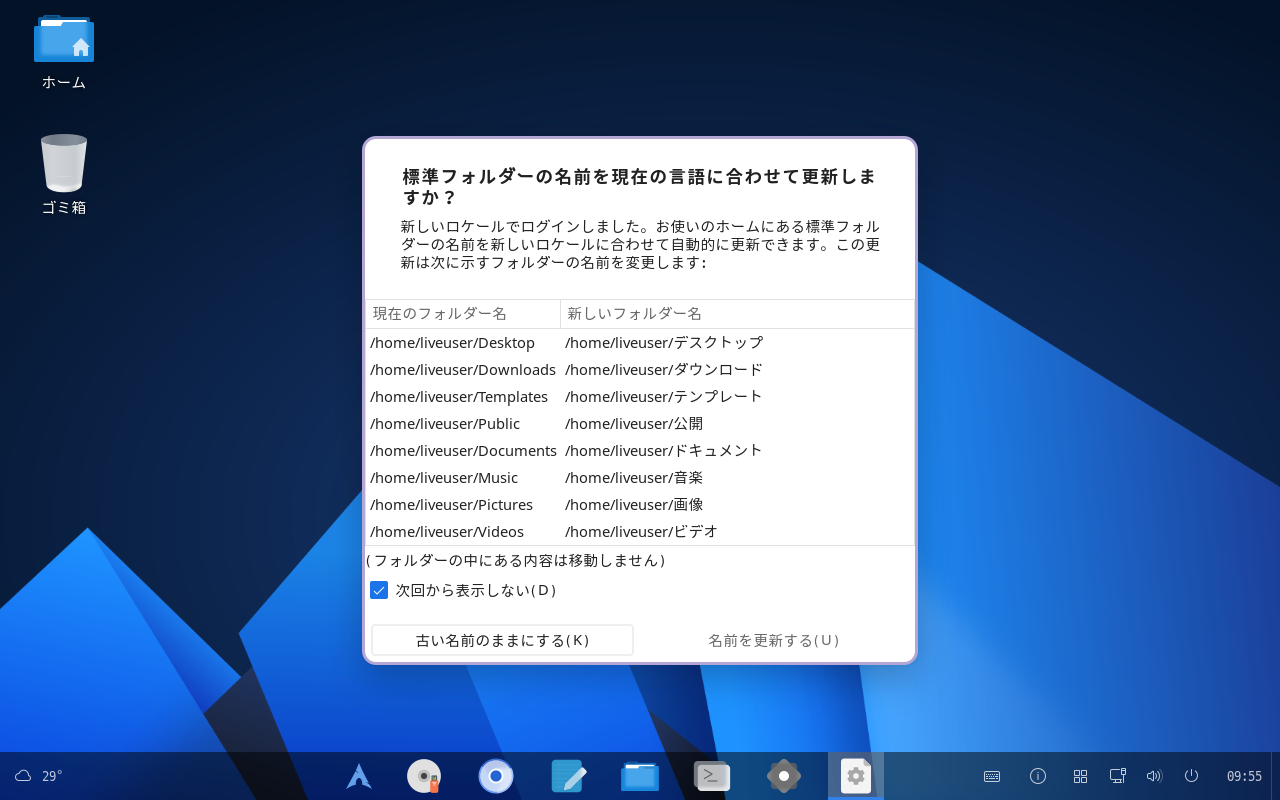

ログインすると日本語環境に切り替わっています。標準フォルダーの名前を日本語化するか確認(xdg-user-dirs-gtk-update
)されますが、英語名称のままにすることもできます。

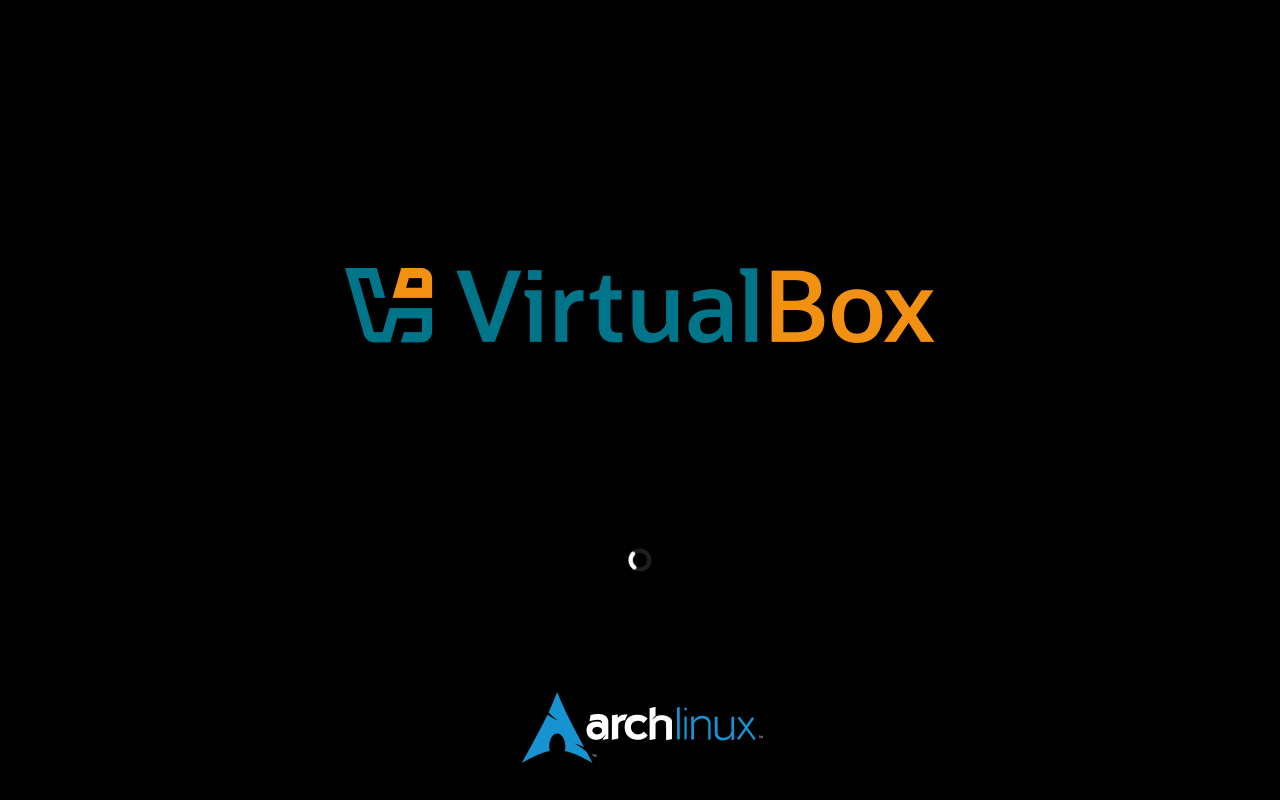

起動画面Plymouth

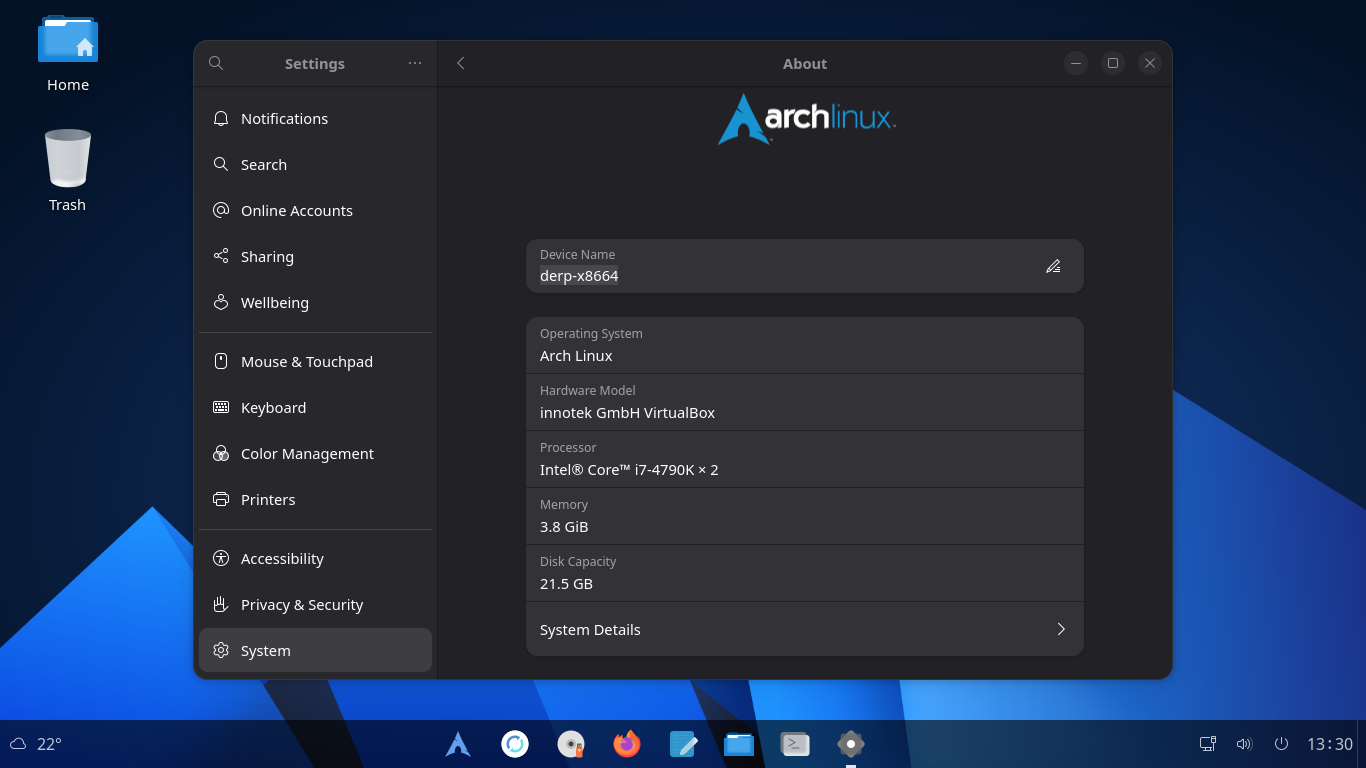

インストール後
環境
- Arch Linux
- calamares 3.3.14
https://github.com/calamares/calamares
構築
AURにはcalamares 3.3.8とcalamares-git 3.3.14が存在します。最新バージョンであるcalamares-gitの方を利用します。
calamares-gitではAURにあるckbcompが前提パッケージになっています。なお、ckbcompのPKGBUILDに記載されているソースアーカイブのURLがリンク切れの状態なので自動でインストールできません。URLを修正してビルドしてインストールします。
- ckbcomp
paru -G ckbcomp
cd ckbcompPKGBUILD # source=("http://ftp.debian.org/debian/pool/main/c/console-setup/console-setup_${pkgver}.tar.xz")
source=("https://salsa.debian.org/installer-team/console-setup/-/archive/$pkgver/console-setup-$pkgver.tar.gz")makepkg -o --skipchecksums
makepkg -f -esudo pacman -U ckbcomp-1.234-1-any.pkg.tar.zst
cp ckbcomp-1.234-1-any.pkg.tar.zst /opt/custom-repo/x86_64/
- calamares-git
paru -S calamares-git
cp ~/.cache/paru/clone/calamares-git/calamares-git-3.3.14.r25.g95aa33f-1-x86_64.pkg.tar.zst /opt/custom-repo/x86_64/
設定
設定ディレクトリ
以下の優先度で設定ファイルが参照されるようです。
- /etc/calamares/
- /usr/share/calamares/
カスタマイズ
設定ファイルのひな型をarchisoのプロジェクトにコピー
cp -r /usr/share/calamares ./airootfs/etc/
calamaresの設定
./airootfs/etc/calamares/settings.conf
sequence:
- show:
- welcome
- locale
- keyboard
- partition
- users
- summary
- exec:
- partition
- mount
- unpackfs
- machineid
- locale
- keyboard
- localecfg
- fstab
- initcpiocfg
- initcpio
- removeuser
- users
- displaymanager
- networkcfg
- hwclock
- services-systemd
- packages
- bootloader
- umount
- show:
- finished
branding: default
prompt-install: false
dont-chroot: false
oem-setup: false
quit-at-end: falseようこそ画面
./airootfs/etc/calamares/module/welcome.conf
showSupportUrl: false
showKnownIssuesUrl: false
showReleaseNotesUrl: false
showDonateUrl: false
requirements:
requiredStorage: 5.5
requiredRam: 1.0
internetCheckUrl: http://example.com
check:
- storage
- ram
- power
- internet
- root
- screen
required:
- ram
geoip:
style: "none"
url: "https://geoip.kde.org/v1/ubiquity" # extended XML format
selector: "CountryCode" # blank uses default, which is wrongusersモジュール
./airootfs/etc/calamares/modules/users.conf allowWeakPasswords: true
allowWeakPasswordsDefault: true弱いパスワードを許容
unpackfsモジュール
./airootfs/etc/calamares/modules/unpackfs.conf unpack:
- source: "/run/archiso/bootmnt/arch/x86_64/airootfs.sfs"
sourcefs: "squashfs"
destination: ""
- source: "/run/archiso/bootmnt/arch/boot/x86_64/vmlinuz-linux"
sourcefs: "file"
destination: "/boot/vmlinuz-linux"ブランディング
./airootfs/etc/calamares/branding/branding.desc
componentName: default
welcomeStyleCalamares: false
welcomeExpandingLogo: true
windowExpanding: normal
windowSize: 800px,520px
windowPlacement: center
sidebar: widget
navigation: widget
strings:
productName: "${NAME}"
shortProductName: Arch
version: Rolling
shortVersion: Rolling
versionedName: Arch Linux Rolling
shortVersionedName: Arch rolling
bootloaderEntryName: Arch
images:
productIcon: "squid.png"
productLogo: "squid.png"
productWelcome: "languages.png"
style:
SidebarBackground: "#292F34"
SidebarText: "#FFFFFF"
SidebarTextCurrent: "#292F34"
SidebarBackgroundCurrent: "#D35400"
slideshow: "show.qml"
slideshowAPI: 2
uploadServer :
type : "none"
url : "http://termbin.com:9999"
sizeLimit : -1
TODO (対応済)
インストーラ
- インストール後にライブイメージのユーザliveuserを削除
./airootfs/etc/calamares/settings.conf sequence:
-exec:
- removeuser./airootfs/etc/calamares/modules/removeuser.conf username: liveuser
- インストール後にインストーラを削除
./airootfs/etc/calamares/settings.conf sequence:
-exec:
- packages./airootfs/etc/calamares/modules/packages.conf operations:
- try_remove:
- calamares-git
- boostlibs
- ckbcomp
- hwinfo
- kcolorscheme
- kconfig
- kcoreaddons
- ki18n
- kiconthemes
- kpmcore
- polkit-qt6
- python-jsonschema
- python-yaml
- solid
- squashfs-tools
- yaml-cpp
- archiso-calamares-config - インストール後に不要となるパッケージの整理
pactree calamares -d 1
で依存パッケージを確認- calamares削除後に依存パッケージの削除を試行し、依存関係破壊の有無を確認
pactree -r <package name>
で各パッケージに依存しているパッケージを確認- calamaresや削除可能なパッケージにのみ依存関係があるのなら削除可能と判断
boostlibs ckbcomp hwinfo kcolorscheme kconfig kcoreaddons ki18n kiconthemes kpmcore polkit-qt6 python-jsonschema python-yaml solid squashfs-tools yaml-cpp
- ブランディングとスライドショー
https://github.com/calamares/calamares-extensions/tree/calamares/branding/image-slideshow./airootfs/etc/calamares/settings.conf branding: fivearch
./airootfs/etc/calamares/branding/fivearch/branding.desc componentName: fivearch
windowExpanding: fullscreenCalamaresを最大化して起動
./airootfs/etc/calamares/branding/fivearch/ImageSlide.qml Item {
Image {
id: image
source: src
width: parent.width
height: parent.height
fillMode: Image.PreserveAspectFit
anchors.centerIn: parent
}
}スライドショーの画像をはみ出さない最大のサイズで表示
- calamares起動時のパスワード入力抑止
./airootfs/usr/local/share/applications/calamares.desktop exec = sudo -E calamares
- aboutボタンの背景色の固定
./airootfs/etc/calamares/brandings/fivearch/stylesheet.qss #aboutButton {
background-color: #292f34;
color: #ffffff;
border: none;
}
#aboutButton:pressed {
background-color: #292f34;
color: #ffffff;
border: none;
}
#aboutButton:hover {
background-color: #292f34;
color: #ffffff;
border: none;
} - calamares設定ファイルのパッケージ化とアンインストール
https://aur.archlinux.org/packages/archiso-calamares-config
/etc/calamares/*
/usr/local/share/applications/calamares.desktop
をパッケージ化してカスタムローカルリポジトリに配置 - plymouth
https://wiki.archlinux.jp/index.php/Plymouth- packages
./packages_x86_64 plymouth
- mkinitcpio
./airootfs/etc/mkinitcpio.conf HOOKS=(... udev plymouth ...)
- grub
./airootfs/etc/default/grub GRUB_CMDLINE_LINUX_DEFAULT="loglevel=3 quiet audit=0 splash"
- dracut
./airootfs/etc/dracut.conf.d/myflags.conf add_dracutmodules+=" plymouth "
- theme: bgrt
./airootfs/etc/plymouth/plymouthd.conf [Daemon]
Theme=bgrt
- packages
GNOMEデスクトップ環境
- Wayland対応
./airootfs/etc/gdm/custom.conf #WaylandEnable=false
WaylandEnable=true
WaylandOnByDefault=true - 時刻表示を24時間表示に変更
[org/gnome/desktop/interface]
clock-format = '24h' - タイムゾーンの自動設定
[org/gnome/desktop/datetime]
automatic-timezone = true - 位置情報の自動収集
[org/gnome/system/location]
enabled = true動作したけれどプライバシー関連なので要注意
- インタフェースをライト系に設定
[org/gnome/desktop/interface]
color-scheme = 'default'
cursor-theme = 'Fluent-dark-cursors'
gtk-theme = 'Fluent-round-Light'
icon-theme = 'Fluent-light' - GDMログイン画面のカスタマイズ
画面解像度が低いと標準のArch Linuxのロゴ画像とGUI部品が重なるので横長のロゴ画像に差し替え/etc/dconf/db/gdm.d/01-logo [org/gnome/login-screen]
#logo='/usr/share/pixmaps/archlinux-logo.png'
logo='/usr/share/pixmaps/archlinux-logo-text.svg'
GNOME Shell拡張機能
- 導入手段
手段 概要 ローカル ホームディレクトリ配下にファイルでインストールする。自動でバージョンアップされて再ログインの際に反映される? AURパッケージ AUR版は最新版よりバージョンが古い場合がある。 AUR-gitパッケージ ソースからビルドするのでバージョンは最新になる。AURパッケージとしてのバージョンが更新されない場合、パッケージ最新化では本体がアップデートされない? - 導入状況
$ gnome-extensions list --enabled | sort
arcmenu@arcmenu.com
argos@pew.worldwidemann.com
blur-my-shell@aunetx
caffeine@patapon.info
dash-to-panel@jderose9.github.com
ding@rastersoft.com
forge@jmmaranan.com
kimpanel@kde.org
openweather-extension@penguin-teal.github.io
user-theme@gnome-shell-extensions.gcampax.github.comライブISOではblur-my-shell、forgeを初期無効化
- Arc Menu
https://archlinux.org/packages/extra/any/gnome-shell-extension-arc-menu-git/gnome-shell-extension-arc-menuが古いのでgnome-shell-extension-arc-menu-gitをビルド
- Argos
https://aur.archlinux.org/packages/gnome-shell-extension-argos-git
paru btop fastfetch reflector journalctlのランチャーを追加extension.js let scriptContents =
'#!/usr/bin/env bash\n\n' +
'URL="github.com/p-e-w/argos"\n' +
'DIR=$(dirname "$0")\n\n' +
'echo " | iconName=dialog-information-symbolic"\n' +
'echo "---"\n' +
'echo "$URL | iconName=help-faq-symbolic href=\'https://$URL\'"\n' +
'echo "$DIR | iconName=folder-symbolic href=\'file://$DIR\'"\n\n' +
'echo "Update Packages (<span color=\'yellow\'><tt>paru</tt></span>) | iconName=software-update-available-symbolic bash=\'paru; pacman -Qdtq | sudo pacman -Rs -; exit\'"\n' +
'echo "Resource Monitor (<span color=\'yellow\'><tt>btop</tt></span>) | iconName=utilities-system-monitor bash=\'btop; exit\'"\n' +
'echo "System Information (<span color=\'yellow\'><tt>fastfetch</tt></span>) | iconName=dialog-information bash=\'fastfetch; read; exit\'"\n' +
'echo "Update Millorlist (<span color=\'yellow\'><tt>reflector</tt></span>) | iconName=system-component-input-sources bash=\'sudo systemctl start reflector.service; cat /etc/pacman.d/mirrorlist\'"\n' +
'echo "System Log (<span color=\'yellow\'><tt>journalctl</tt></span>) | iconName=text-x-log bash=\'journalctl -rp err -b; exit\'"\n' +
'echo "Fish Shell | iconName=utilities-terminal-symbolic"\n' +
'echo "--Enable | iconName=media-playback-start-symbolic bash=\'sed -i s/FISH_ENABLED=0/FISH_ENABLED=1/ ~/.bashrc\' terminal=\'false\'"\n' +
'echo "--Disable | iconName=media-playback-stop-symbolic bash=\'sed -i s/FISH_ENABLED=1/FISH_ENABLED=0/ ~/.bashrc\' terminal=\'false\'"'; - Blur My Shell
https://aur.archlinux.org/packages/gnome-shell-extension-blur-my-shell - Caffeine
https://archlinux.org/packages/extra/any/gnome-shell-extension-caffeine/ - Dash to Panel
https://archlinux.org/packages/extra/any/gnome-shell-extension-dash-to-panel/[org/gnome/shell/extensions/dash-to-panel]
panel-element-positions='{"0":[{"element":"showAppsButton","visible":false,"position":"stackedTL"},{"element":"activitiesButton","visible":false,"position":"stackedTL"},{"element":"leftBox","visible":true,"position":"stackedTL"},{"element":"centerBox","visible":true,"position":"stackedBR"},{"element":"taskbar","visible":true,"position":"centerMonitor"},{"element":"rightBox","visible":true,"position":"stackedBR"},{"element":"systemMenu","visible":true,"position":"stackedBR"},{"element":"dateMenu","visible":true,"position":"stackedBR"},{"element":"desktopButton","visible":true,"position":"stackedBR"}],"DEL-402HR7B310VL":[{"element":"showAppsButton","visible":false,"position":"stackedTL"},{"element":"activitiesButton","visible":false,"position":"stackedTL"},{"element":"leftBox","visible":true,"position":"stackedTL"},{"element":"centerBox","visible":true,"position":"stackedBR"},{"element":"taskbar","visible":true,"position":"centerMonitor"},{"element":"rightBox","visible":true,"position":"stackedBR"},{"element":"systemMenu","visible":true,"position":"stackedBR"},{"element":"dateMenu","visible":true,"position":"stackedBR"},{"element":"desktopButton","visible":true,"position":"stackedBR"}]}'初期設定はモニタ”0”を指定
- Desktop Icons NG
https://archlinux.org/packages/extra/any/gnome-shell-extension-desktop-icons-ng/ - Forge
https://aur.archlinux.org/packages/gnome-shell-extension-forge - Input Method Panel
https://aur.archlinux.org/packages/gnome-shell-extension-kimpanel-git - OpenWeatherRefind
https://aur.archlinux.org/packages/gnome-shell-extension-openweatherrefinedGNOME Shell
48
を追加 - User Theme
GNOME Shellテーマをダーク系に設定[org/gnome/shell/extensions/user-theme]
name='Fluent-round-Dark'
パッケージ
- btop
- chromium
~/.config/chromium-flags.conf --password-store=basic
--enable-features=UseOzonePlatform
--ozone-platform=wayland
--enable-wayland-imeGNOMEのデフォルトのパスワードストアはgnome-libsecret。初回起動時にパスワードを聞かれてしまう。basicで回避
- fastfetch
カスタムテーマ~/.config/fastfetch/config.jsonc
- fcitx5 fcitx5-im fcitx5-mozc
かな漢字変換 - fish
fishの設定、aliasの追加~/.config/fish/config.fish
./airootfs/etc/skel/.bashrc export FISH_ENABLED=0
if [[ $FISH_ENABLED == 1 && $(ps --no-header --pid=$PPID --format=comm) != "fish" && -z ${BASH_EXECUTION_STRING} ]]
then
shopt -q login_shell && LOGIN_OPTION='--login' || LOGIN_OPTION=''
exec fish $LOGIN_OPTION
fi - gnome-terminal
ダーク系に設定[org/gnome/terminal/legacy]
theme-variant = 'dark' - nautilusのアイコンサイズ変更
[org/gnome/nautilus/icon-view]
default-zoom-level = 'small-plus' - nvidia nvidia-utils nvidia-settings
- reflector
サービスによる定期自動ミラーリスト更新設定を有効化 - starship
カスタムテーマ~/.config/starship.toml
- spice-vdagent
GNOME Boxes(QEMU)でクリップボード共有
https://wiki.archlinux.org/title/QEMU#Enabling_SPICE_support_on_the_guest - paru
./airootfs/etc/skel/.config/paru/paru.conf [options]
SudoLoop
SkipReview - makepkg
./airootfs/etc/skel/.makepkg.conf MAKEFLAGS="-j $(nproc)"
- vi
./airootfs/etc/skel/.exrc set showmode
set number
set ruler
set title

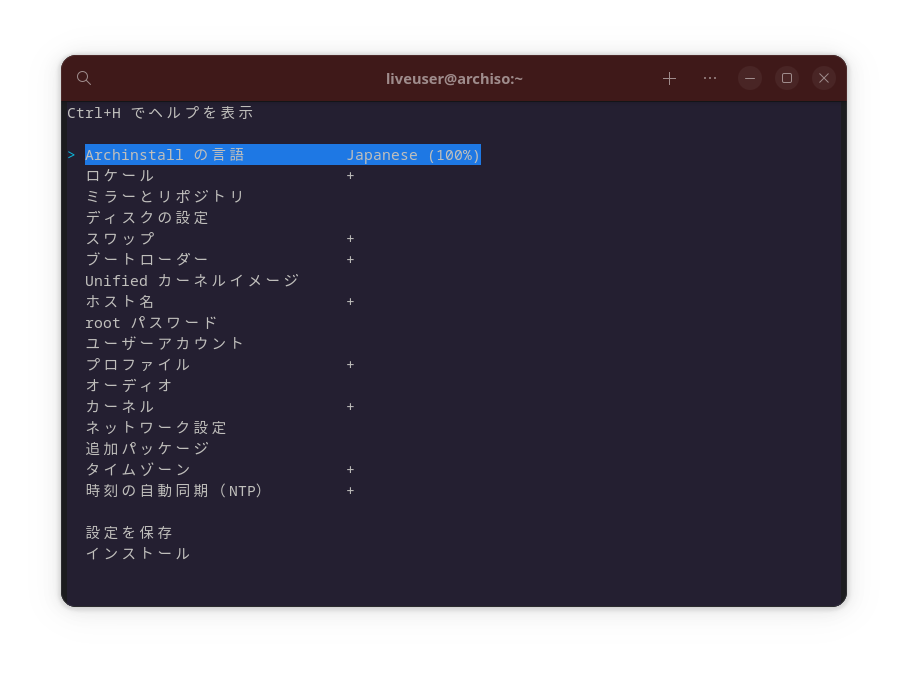

set showcmd - archinstall
日本語ターミナル環境で実行できて便利かもしれない。
日本語環境
- ライブイメージ起動時の言語を指定する場合
./airootfs/etc/locale.conf #LANG=en_US.UTF-8
LANG=ja_JP.UTF-8 - 日本語ロケール追加
./airootfs/etc/locale.gen en_US.UTF-8 UTF-8
ja_JP.UTF-8 UTF-8 - 日本語入力を追加、有効化
ライブイメージ起動直後からかな漢字変換が利用できるようになった - GNOME/Wayland 上での Fcitx の利用
/etc/environment XMODIFIERS=@im=fcitx
ハードウェア
- Wi-Fi接続 : OK
- Bluetooth接続 : OK
TODO (これから)
動作確認
- VirtualBox : OK
- Gnome Boxes (qemu/KVM/livirt) : OK
- VMWare : 未テスト
- Hyper-V (第一世代/第二世代) : 未テスト
- 物理環境 : 未テスト
- Secure boot環境での挙動把握
チューニング
- ISOイメージサイズと展開時間のチューニング
squashfs : xz / gzip / lzo - インストール済のパッケージのサイズ確認
pacman -Qqe > installed_packages.txt
while read -r package; do
du -sh "/var/cache/pacman/pkg/$package-"*".pkg.tar.zst"
done < installed_packages.txt > package_sizes.txt
追加設定、施策
- githubに登録
https://github.com/ktkr3d/archiso-gnome
https://github.com/ktkr3d/archiso-calamares-config - デフォルトターミナルエミュレータの設定
gnome-terminalが依存され過ぎて削除できない - フォント指定
[org/gnome/desktop/interface]
font-name 'Noto Sans CJK JP 11'
document-font-name 'Noto Sans CJK JP 11'
monospace-font-name = 'HackGen Console NF 11' - paruキャッシュとカスタムローカルリポジトリの連動
paru
find ~/.cache/paru/clone/ -name "*.pkg.tar.zst" - xorgの削除
xorg-serverを削除しても特に依存関係は崩れなかった - colord
起動時にcolordがcore dumpする。その後正常にcolordサービスは実行されている。
https://archlinux.org/packages/extra/x86_64/colord/ - カーネルパラメタ
- CalamaresのWelcome画面の言語一覧に日本語が2つ存在するのはなぜ?
TODO (多分やらない)
- chromium → Google Chrome
なんとなくデフォルトはOSSで揃えておきたいので保留。 - nautilusのブックマークに
/
を追加~/.config/gtk-3.0/bookmarks
スクリプト等での追加が必要そうなので保留。 - pamac追加
基本的にパッケージはコマンドで入れるので保留。 - 日本語ロケールでもホームフォルダの各ディレクトリ名を英語のままに
.config/user-dirs.dirs
.config/user-dirs.locale
/etc/xdg/user-dirs.defaults
従来通りLANG=C xdg-user-dirs-gtk-update
で実現できるので保留。 - fcitx5-diagnose対策(ログイン時のポップアップ抑止)
https://github.com/fcitx/fcitx5/issues/1088#issuecomment-2261538744
ログイン後fcitx5 -r
でポップアップが表示されないことから、fcitx開始から7秒以内にKimpanelのプロセスが生成されていないんだろうなぁ。メンテナが対応してくれるかもしれないので保留。$ fcitx5-diagnose
4. User Interface:
Found 3 enabled user interface addons:
Classic User Interface
KDE Input Method Panel
DBus Virtual Keyboard
Kimpanel process:
6097 /usr/bin/gnome-shell
